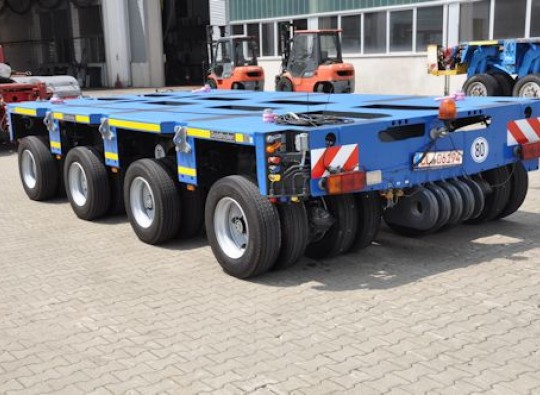

Goldhofer - THP-SL4

• Landsberg
• Stuerzer

POA

Additional Notes from seller

number
8005691
Manufacturer
Goldhofer
Type
THP-SL4
Sonstiges
Special Equipment:
- longitudinal- or transversely combination of modular trailers
- middleframe with integrated air- and hydraulic oil tanks
- front and rear: optimized bolt-coupling-lashes for length combination
- two twin arranged tires with swing axle wheelsets with a total of 8 wheels
each axle-line
- axles with ball bearing race ring mounted on rear end
- hydraulic axle compensation +/- 300 mm, hydro-pneumatic suspension with gas
accumulators and hose-rupture safety-valve on each axle
- in the running gear integrated, hydro-mechanical 2-circuit-allwheel-force
steering with a max. steering angle of the axles of about +/- 55°,
- 2-conductor-allwheel-air brake and spring-loaded parking brake
- hydraulic pin joint for THP/SL coupling
- ABS /AGS


Speed 0,5 km/h: max. technical axle load 45.000 kg/ Dead weight (ohne
Zubehör) 13.850 kg / Payload 166.150 kg;
Speed 1 km/h: max. technical axle load 42.200 kg/ Dead weight (ohne
Zubehör) 13.850 kg / Payload 154.650 kg;
Speed 5 m/h: max. technical axle load 36.500 kg/ Dead weight (ohne
Zubehör) 13.850 kg/ Payload 132.550 kg;
Speed 50 km/h: max. technical axle load 18.400 kg/ Dead weight (ohne
Zubehör) 13.850 kg/ Payload 59.750 kg;
Speed 80 km/h: max. technical axle load 16.400 kg/ Dead weight (ohne
Zubehör) 13.850 kg/ Payload 51.750kg ;
